Insulators on barbed wire

Help Support CattleToday:

JeffK-MN

Well-known member
Joined
Apr 12, 2013
Messages
163
Reaction score
0
Does anyone have a good way to put electric fence insulators on barbed wire?
The deer are shorting the fence out every night. I have 2" insulators on the posts but the deer still push it and it hooks on the barbed wire. I've wired some t-post insulators on the barbed wire it has helped but some times it turns over and shorts out anyway.
Thanks Jeff


ez14.

Well-known member
Joined
Jan 30, 2017
Messages
1,400
Reaction score
2
Location
west MI
Well I've never had to deal with this but just sitting here thinking about it I'd say you need to attach your insulators to 2x2 wood sections that reach 2 strands of barb wire so it won't twist so easily.

Or attach 2 inch pvc pipe sections in the same manner as above minus the insulators


kenny thomas

Well-known member
Joined
Nov 16, 2008
Messages
10,188
Reaction score
141
Location
SW tip of Virginia
JeffK-MN":3o8hy6p0 said:
Does anyone have a good way to put electric fence insulators on barbed wire?
The deer are shorting the fence out every night. I have 2" insulators on the posts but the deer still push it and it hooks on the barbed wire. I've wired some t-post insulators on the barbed wire it has helped but some times it turns over and shorts out anyway.
Thanks Jeff

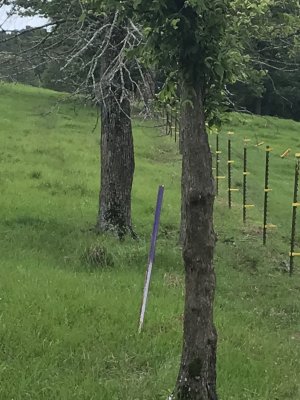

They make a wire offset that holds the hot wire about 10" out from the barb wire. In 3 years I have never had it short out.


bhooper

Well-known member
Joined
Nov 15, 2012
Messages
53
Reaction score
0
Location
West TN
Texas PaPaw":6xo77m41 said:
Have been using these offsets for 10+ years with no problems. IMO-for hot wire running parallel to barbed wire this is the best setup.

Do you use these exclusively or do you still put standoff insulators on the t posts in between?


Texas PaPaw

Well-known member
Joined
Dec 12, 2005
Messages
1,249
Reaction score
1
Location
Central Texas
bhooper":2gxsv8ol said:
Texas PaPaw":2gxsv8ol said:
Have been using these offsets for 10+ years with no problems. IMO-for hot wire running parallel to barbed wire this is the best setup.

Do you use these exclusively or do you still put standoff insulators on the t posts in between?

Just use the offsets. Put one every 40 ft for 12.5 ga HT wire.


kenny thomas

Well-known member
Joined
Nov 16, 2008
Messages
10,188
Reaction score
141
Location
SW tip of Virginia
Texas PaPaw":31j5njjx said:
bhooper":31j5njjx said:
Texas PaPaw":31j5njjx said:
Have been using these offsets for 10+ years with no problems. IMO-for hot wire running parallel to barbed wire this is the best setup.

Do you use these exclusively or do you still put standoff insulators on the t posts in between?

Just use the offsets. Put one every 40 ft for 12.5 ga HT wire.
Same here, the t-posts will be no more as I build more new fence.

OP
J

JeffK-MN

Well-known member
Joined
Apr 12, 2013
Messages
163
Reaction score
0
Thanks I have been looking for that kind of insulators for some time.
Jeff


MtnCows93

Well-known member
Joined
Jul 13, 2017
Messages
335
Reaction score
1
Location
Foothills of NC
my neighbor used 1/2'' pvc pipe cut about 16'' long. drill 2 holes near the end to nail to the wood post and 1 hole drilled on the other end and thread the high tensile wire through. basically a cheap homemade insulator theyve been there 20+ years
