Hay Barn Design

The metal quanson huts look to be great for equipment and hay storage. Don't have one but considered one for all the farm toys. Wife wants a pretty barn, I want large and affordable. Quanson is ugly as a Sat morning coyote trap, but serves the purpose just the same. I have never seen a fabric or plastic storage facility/green house or otherwise last more than a season or two.... advertised as cheap, storage, fast.
Quality or lasting construction is not included.

Neighbor has a fabric hoop building that's at least 20 years old and it's surviving but it wasn't "cheap" back then.
But the owner said the covering is about due for replacement and another quality one is insanely expensive. Says they shoulda built a metal quonset hut or pole building as their lifespan is indefinite.

I wouldn't recommend parking any piece of equipment with an electrical system under a lean-to off the side of a hay barn, the mice/rats would have a field day with it.
Been doing it for 6-8 years and no problems yet . I think barn cats probably help . Cleaning out hay baler , tractor etc I think also helps . The only time we've had issue with rats/ mice getting in a tractor it was sitting in the middle of an open field.

Been doing it for 6-8 years and no problems yet . I think barn cats probably help . Cleaning out hay baler , tractor etc I think also helps . The only time we've had issue with rats/ mice getting in a tractor it was sitting in the middle of an open field.

Same. A couple of good cats are good in a hay barn. I have all kinds of equipment tucked in with hay in barns and don't have any issues that I don't also have parked other places.

Like Chevy.. Ive never had a problem in hay barns w/ equipment b/c I have cats in there. I parked a tractor in a barn I have in the back 40 w/ no one around for a mile. I left it up there for a week and a field rat go in there, chewed the seat belt in half and made a nest up in the fan as big as a basketball. It made a thump when I started but ran fine so I didn't pay attention. I drove it the mile down to the house and I started doing a little dirt work. Next thing I know a huge momma rat jumps out with a bunch of babies holding onto here tits. some cats were around and grabbed them all in no time.

I had a track loader I parked around and a rat made a house in there. everytime I started that thing after about 10 minutes of moving it around...... that rat would come running right up the hood and JUMP right at me!! hah. He wasn't going for me, but would run into the hand control lever compartment. a few times he came up the back and that damn rat ran right down by arm 2 times!


but anyway...

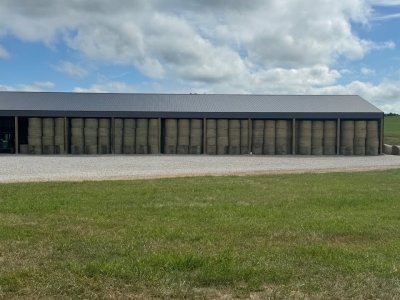

now this is a nice hay barn. (not mine)


Been doing it for 6-8 years and no problems yet . I think barn cats probably help . Cleaning out hay baler , tractor etc I think also helps . The only time we've had issue with rats/ mice getting in a tractor it was sitting in the middle of an open field.
Like you, I didn't have a problem for years - until I did. My wife works in the vet world, so there's no shortage of barn cats here.

You pay your money and you take your chances.

Been doing it for 6-8 years and no problems yet . I think barn cats probably help . Cleaning out hay baler , tractor etc I think also helps . The only time we've had issue with rats/ mice getting in a tractor it was sitting in the middle of an open field.
Cats are a must in the barn.. i take any extra over to a friends farm. He's a Row cropper too ,had about 10 to 15k of damage on tractors and combines from rats

Funny how smart they were back in the day! My father built Quonset buildings back in the 40's and 50's and a lot of them are still standing. We have one built in the 50's, ugly as hell, never had maintenance done. Built using 1x4 built 4 thick for the frame and 1x4 for the horizontal pieces. Still standing firm

Funny how smart they were back in the day! My father built Quonset buildings back in the 40's and 50's and a lot of them are still standing. We have one built in the 50's, ugly as hell, never had maintenance done. Built using 1x4 built 4 thick for the frame and 1x4 for the horizontal pieces. Still standing firm
i have one built exactly like that. I just painted it. duct taped a pole onto my spray gun to get the top.

Had a man here build my last hay barn 4 or 5 years ago..now has doubled in price, to build same 40 X 60.
Remember the surge in prices for lumber as Covid took off? I expect a similar surge with the fires in So. Cal.
I built a pole barn in 2020 just before the prices escalated, that was bid for 20K from a reputable builder... for less than 6K in materials. It is amazing what labor and a contractor's license costs.

Hi there, we have successfully used skids to stack our hay up away from the ground...we nab them for free.😉
Yeah, I've used pallets too. It's better to have a building with the floor pitched to drain and high enough that any surrounding water doesn't crawl under the sides.

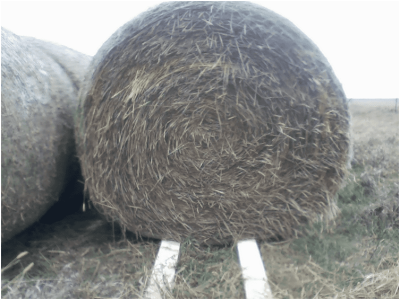

I use what I call "bale rails" to store mine outside. Much easier to work with than pallets. Very little to almost no spoilage from rain, and no "soggy bottom boys" to deal with. Minimizes overhead costs. Good for single year storage, probably would choose to drape a tarp over them somehow if intending to keep them longer than that... and you're NOT limited then by the size of a building...

I don't put the rows this close together anymore either... set the rows 12' apart OC... leaves about 6' between each row. Takes up quite a bit more space, but you don't end up with snow melting into the bales because of drifts between/on top of the rows. Also allows me to take out any row I want with the tractor (I pick them from the row with a 3 pt. carrier), so I can choose the KIND of bale I want..., like for selecting "1st crop or 2nd crop", or one of each to blend them. Lately I've been feeding some pretty ripe 1st crop, so I unroll one of those, then unroll a 2nd crop bale over the top of the swath, which blends them as they eat, so they clean up the 1st crop better. I set my rows 50 bales per (250' long), so it makes it easy to check "inventory". Minimal risk for loss of inventory to fire, etc. 0 risk to machinery from rodents. My cousin had his shed burn up from a bale fire a few years ago... you hear about it happening every so often. I think his started from a spark from his skid loader when he was putting hay in it. Keeping them stored outside pretty well eliminates, or at the very least, greatly reduces any chance of this, or any of the other "risks" associated with dedicated indoor storage.


This bale does not have over the edge net, but when the cattle get done with it, I bet there is not over 5-10 lbs. they don't eat. Under the net the penetration is maybe 1/4 to 1/2 inch and very little on the bottom. I have been feeding two-year-old outside net wrap hay and not a lot of loss there either. What gets me I see a lot of people going to great pains to make sure every little straw is saved and there sets all their equipment outside.


Yeah, I have edge wrapped bales and feel that is also worth it. When I put them in rows on the bale rails, stacked tight face to face, I just don't see water penetration damage in between the bales at all. I put them as tightly as I can, which "adds up", when you put them in long rows. Once you get about 10 or so set down on the rails, you can't really push the "whole row" anymore without spinning your wheels... so after that, I just bump them up against the next one pretty hard and set it down.

But still, I sometimes THINK I'd "like" to have a tarp over the row for keeping the water/snow off the bale (would help prevent net from freezing on in icy rains and snow, etc.) ... but that then would also mean that I would have to remove and store all those tarps every time I wanted to take a bale, and from season to season. It's pretty nice to just go and grab one without that significantly extra step and hassle, for sure. So I'm not so sure that it'd be worth it to me.

I just pick up the bale rails "whenever", when the weather is kinda nice, and stack them up for the next season (typically, I'll put 50 to a bundle and strap them with a metal band, and then stack up the bundles, outside, till I need them again). But if the weather is kinda nasty, I might even leave them laying there for the whole row length, and just straddle them with the tractor to retrieve bales. I PREFER to pull them fairly regularly though, maybe once a week or so, so I don't have to back all the way down the whole length of a row over them... but if the weather is bad, I won't bother till we get a nice spell. THAT is what's so much nicer about using "rails" rather than "pallets" or something similar, to keep them up off the ground. They're also alot easier to break loose from the ground if frozen down, than a pallet or similar device would be. Just pop 'em once on the side with an 8# hammer.

I like storing them reasonably close to where I'll be feeding them too, when I can. That said, I'm keeping my cows on about 250 acres right now... the bales are stored right next to that pasture... but I'm feeding them this year way at the back end of it, so I'm STILL transporting when I go out to feed about a mile, with most of that distance being on the county/township roads. As long as I'm not having to make two trips to feed them, storing nearby to where I'm feeding really doesn't save me any travel time... because my tractor is in the shed here at home (and has to be, to be plugged in).
