Head gate setup

The place to start if you are new!
Post Reply
ccattleco
Beginner
Beginner
Posts: 5
Joined: Mon Apr 08, 2019 6:01 pm
Has thanked: 8 times

Head gate setup

Post by ccattleco » Tue Apr 09, 2019 8:38 pm

I’m just starting out so a squeeze chute isn’t exactly in my budget right now. I’ve been looking around at just head gates. For the people that just use head gates, what is your setup like? What type/brand head gate do you have? Thanks a bunch for any input!



circlebllc
Cowhand
Cowhand
Posts: 129
Joined: Sat Mar 26, 2011 8:30 pm
Location: Central Missouri
Has thanked: 97 times
Been thanked: 10 times

Re: Head gate setup

Post by circlebllc » Tue Apr 09, 2019 9:03 pm

Lots of us use or have used a head gate only. They work very well, most of the time. Buy a good one and keep it rust free. Should last until money can be saved. Problem with head gate only, most have a set width alley. A stuck cow is a problem.
Stand to the left or the right. Never on the fence.

DCA farm
Cowhand
Cowhand
Posts: 133
Joined: Sat Sep 22, 2018 11:45 am
Has thanked: 2 times
Been thanked: 9 times

Re: Head gate setup

Post by DCA farm » Tue Apr 09, 2019 11:30 pm

I had a old hunk of junk that a cow couldn’t even fit through so I had to have a gate on side to let cow out. Could only work 1 in ally at a time but I made it work. had a guy offer me $100 for it I let him take it I’m
Trying to find me another head gate now i am
Almost done with my new working pens and chute I just can’t afford one of them new squeeze chutes myself

User avatar
sstterry
GURU
GURU
Posts: 1016
Joined: Sat Jul 08, 2017 5:04 am
Location: Bulls Gap, TN
Has thanked: 96 times
Been thanked: 52 times

Re: Head gate setup

Post by sstterry » Wed Apr 10, 2019 4:42 am

Priefert makes a good and popular headgate. And just about everyone here understands about budgeting. Sometimes we do what we can afford.

User avatar
True Grit Farms
GURU
GURU
Posts: 8744
Joined: Mon Jan 04, 2016 4:29 pm
Location: Middle Georgia
Has thanked: 99 times
Been thanked: 256 times

Re: Head gate setup

Post by True Grit Farms » Wed Apr 10, 2019 6:32 am

Install two 8' bull gates directly behind the head gate and you can pretty much do anything that's needed.
If we'd of know this we'd of picked our own cotton.

User avatar
JW IN VA
Rancher
Rancher
Posts: 884
Joined: Mon Oct 07, 2013 7:30 pm
Location: West Central Highlands of Va
Has thanked: 21 times
Been thanked: 16 times

Re: Head gate setup

Post by JW IN VA » Wed Apr 10, 2019 12:40 pm

I have an old Tox O Wik that has been in for probably thirty years and seen a lot of cattle.It's starting to loosen up now but it's paid for and if it fails tomorrow,it has done it's job.I built it into a homemade alley with an 8' foot gate on the right side to allow me to get to a cow's side and feet.Handy when helping a calf who needs to learn to nurse.
A dedicated squeeze is nice but there are thousands of head run through the older type.Neighbors have three similar.Wish they had put side gates in but they didn't ask me nor ask me to pay for it.
Not everything your neighbors do is wrong-Not everything they do is right,either.

User avatar
greybeard
Mentor
Mentor
Posts: 18091
Joined: Thu Jul 05, 2012 5:51 pm
Location: Cleveland Tx
Has thanked: 55 times
Been thanked: 191 times

Re: Head gate setup

Post by greybeard » Wed Apr 10, 2019 1:07 pm

Priefert HG91 headgate mounted to GOOD wooden posts or (better) steel posts, or (easier but more expensive) to a Priefert headgate stand will work, but even with the headgate stand, you will need to plant at least some good teeposts along each side of the stand. I used one just like that without a squeeze for several years and it worked fine.
Headgate stand alone will run you over $400 but you can make one cheaper than that.
https://www.nrsworld.com/priefert/prief ... and-141454



https://www.youtube.com/watch?v=_6FjUiNp2Ns
"For evil to flourish, all that is required is for good men to do nothing" Burke

It ain't easy being a used cow salesman.

Covet Not!

User avatar
snoopdog
GURU
GURU
Posts: 1047
Joined: Sat Mar 25, 2017 5:16 am
Location: ne oklahoma
Has thanked: 121 times
Been thanked: 48 times

Re: Head gate setup

Post by snoopdog » Wed Apr 10, 2019 7:56 pm

I like a good automatic catch, but its not necessary, what is necessary is the ability to reroute them back to the working area, if they get missed. Concentrate on that, Because they get missed, automatic catch or manual.
Being poor is the most expensive thing there is

ccattleco
Beginner
Beginner
Posts: 5
Joined: Mon Apr 08, 2019 6:01 pm
Has thanked: 8 times

Re: Head gate setup

Post by ccattleco » Wed Apr 10, 2019 9:06 pm

Wow thanks for the great advice everyone! Y’all are great.

User avatar
greybeard
Mentor
Mentor
Posts: 18091
Joined: Thu Jul 05, 2012 5:51 pm
Location: Cleveland Tx
Has thanked: 55 times
Been thanked: 191 times

Re: Head gate setup

Post by greybeard » Thu Apr 11, 2019 10:36 am

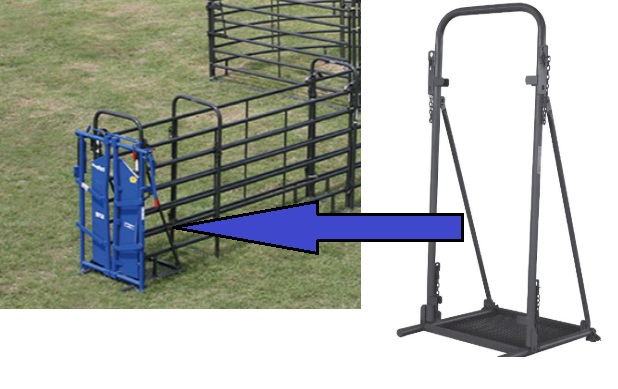

The purpose of the flat grid at the bottom of the head gate stand is to keep the cow from pulling the HG up. Kinda hard to pick something up and running off with it when you're standing on it..
I never had it happen but read somewhere that someone had one pull up or break the wooden posts off that the HG was mounted to and it ran off out in the pasture with the HG still around it's neck.
"For evil to flourish, all that is required is for good men to do nothing" Burke

It ain't easy being a used cow salesman.

Covet Not!

jwimberly
Cowhand
Cowhand
Posts: 78
Joined: Tue Mar 07, 2017 10:32 am
Location: Northwest GA

Re: Head gate setup

Post by jwimberly » Thu Apr 11, 2019 10:41 am

greybeard wrote:
Wed Apr 10, 2019 1:07 pm
Priefert HG91 headgate mounted to GOOD wooden posts or (better) steel posts, or (easier but more expensive) to a Priefert headgate stand will work, but even with the headgate stand, you will need to plant at least some good teeposts along each side of the stand. I used one just like that without a squeeze for several years and it worked fine.
Headgate stand alone will run you over $400 but you can make one cheaper than that.
https://www.nrsworld.com/priefert/prief ... and-141454



I second this advice. I started out with the corral style that rotate and hated it. I upgraded to the HG91 and it's been flawless. I believe it'll work with Prieferts squeeze chutes also so if you do upgrade later down the road at least you'd already have it.

buckshotbob
Beginner
Beginner
Posts: 4
Joined: Sun Feb 24, 2019 10:38 am
Been thanked: 3 times

Re: Head gate setup

Post by buckshotbob » Tue Apr 16, 2019 6:57 pm

On my farm due to the fact that I hate wood I started by building my head gate into my pen run. I put ten foot water pipes into the ground four feet and pour concrete in with them. These old sprinkler pipes are solid. I welded my head gate on to them then eyelets every ten inches from the top down. using the torch I burnt 3/4 holes in the rest of the post in the line then welded eyelets to the other end post. Half inch steel cable was put thru all the holes with a Flemish eye on one end and a turn buckle on the other. Lifetime fencing with no broken boards. The run is 28 inches wide and the same thing was done for my cattle pen with ten foot gates to let them in and out.

This allows me to open gates in the direction I want them to travel either out to the field or into the head gate. The head gate has two gates attached to the front to either return to the pen or field or straight into the trailer. If I had to buy all the material at cost it would kill me but I get the old pipes cheap and the cable for free as it is old tugger cable from a mining company. My pens are 40 by 40 for the cows and 30 by fourty for my stockers and bull. This year im finishing my birthing pen which will allow my cows 20 by 40 and a private ten by 8 lean to have their calves in. After visiting a number of cattle sales yards I realised they have no trouble moving critters with their gate cable system so I copied it for my farm.


This summer I am going to start running cable thur my wooden fence post to slowly replace the electric fence where I shuttle cattle to different sections of my bush and pasture.

mdt192
Beginner
Beginner
Posts: 14
Joined: Tue Jun 27, 2017 9:22 am
Location: East Mississippi

Re: Head gate setup

Post by mdt192 » Wed Apr 17, 2019 6:52 am

greybeard wrote:
Thu Apr 11, 2019 10:36 am
The purpose of the flat grid at the bottom of the head gate stand is to keep the cow from pulling the HG up. Kinda hard to pick something up and running off with it when you're standing on it..
I never had it happen but read somewhere that someone had one pull up or break the wooden posts off that the HG was mounted to and it ran off out in the pasture with the HG still around it's neck.
Saw that happen with a 2,000# bull. Talk about a train wreck.
